Riedon RSA Series

Riedon RSA Series

The RSA series of precision current shunts from Riedon have been especially designed for DC ammeters and similar instruments. These base-mounted shunts offer current ratings from 5A up to 150A with outputs of 0.05V, 0.1V or custom options available. They utilise a Manganin® resistive element and have a standard tolerance of ±0.25% with ±0.1% parts available on request. The very low resistance values required for the shunt resistors, which range from 333.3µΩ at 150A to 0.01Ω at 5A, are provided by the Manganin® resistive elements. These RSA precision shunt resistors are also UL listed and feature a 4-terminal design, separating the heavy duty load carrying connections from the voltage sensing terminals.

  • Base mounted shunt
  • Manganin® resistive element
  • 0.05V output available in select resistance values between 333.3µΩ and 0.01Ω
  • 0.1V output available in select resistance values between 666.7µΩ and 0.02Ω
  • Current rating from 5A to 150A
  • Standard tolerance of ±0.25% with ±0.1% parts available on request
  • Dielectric strength 750VDC (terminal block to base)
  • Operating temperature −40°C to +60°C
  • UL listed

Riedon RSA series base mounted shunts cover the following applications:

  • Solar generators
  • Wind power
  • Heavy industry
  • Electroplating
  • Battery chargers
  • Mining

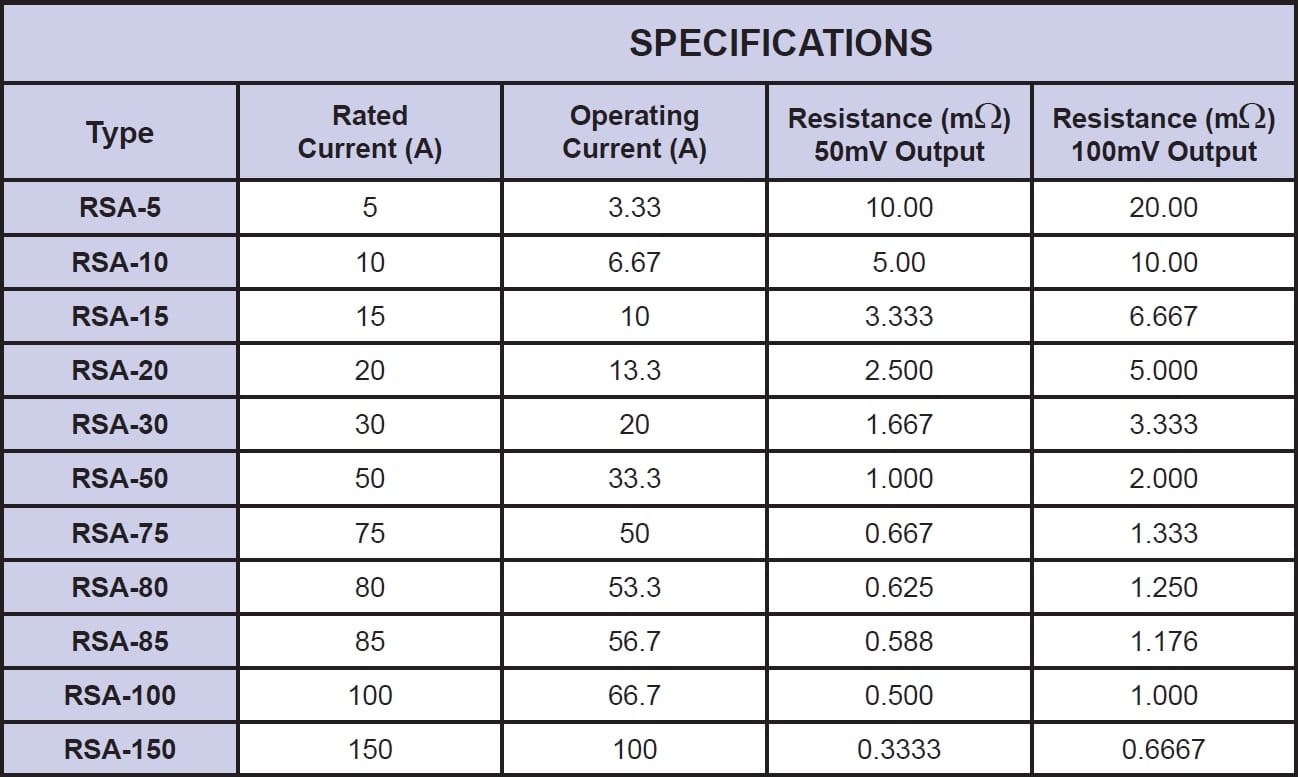

The below table gives the full specifications for each resistor model available in the Riedon RSA base mounted shunt series:

Riedon RSA Specifications

1 Please contact us for other resistance values

Specifications
Additional Features
  • Base mounted shunt
  • Output rating of 0.05V or 0.1V
  • UL listed
  • Manganin® resistive element
  • Dielectric strength of 750VDC (terminal block to base)
  • Operating temperature of -40° to +60°C
Current Rating 5A to 150A
Maximum Resistance
  • 0.01Ω (0.05V output)
  • 0.02Ω (0.1V output)
Minimum Resistance
  • 333.3µΩ (0.05V output)
  • 666.7µΩ (0.1V output)
Package/Size Surface-mount
TCR ±15 ppm/°C
Tolerance ±0.25%
