Isabellenhütte SMT-PW Series
The SMT-PW surface-mount current sensing resistor series from Isabellenhütte offers SnPb tinned connections suitable for aviation and aerospace applications being ESCC 4001/027 qualified. Designed for higher power ratings and low internal temperature rises due to the larger pad termination sizes. The Manganin® alloy resistance element has a resistance range of 0.004Ω to 4Ω, TCR of below 50ppm/K over the temperature range of +20°C and +60°C for resistance values of 0.010Ω or more and offers excellent long term stability. The SMT-PW model offers these capabilities in a 2817 chip size.
- 2-terminal surface-mount resistor with large solder pads
- SnPb tinned connections
- Resistance range available 0.004Ω to 4Ω
- Power rating 5W (at +105°C)
- Constant current up to 35A (0.004Ω)
- TCR of <50 ppm/K for values ≥0.010Ω and <100 ppm/K for values <0.010Ω (between +20°C and +60°C)
- Applicable temperature range -55°C to +170°C
- Tolerance options available ±0.5%, ±1%, ±2% and ±5% (depending on the resistance values required)
- 2817 chip size
- ESCC 4001/027 qualified
Typical applications for the SMT-PW series include:
- Aviation and aerospace
- Current sensor for power hybrid applications
- Control systems for the automotive market
- Power modules
- Frequency converters
- Switch mode power supplies

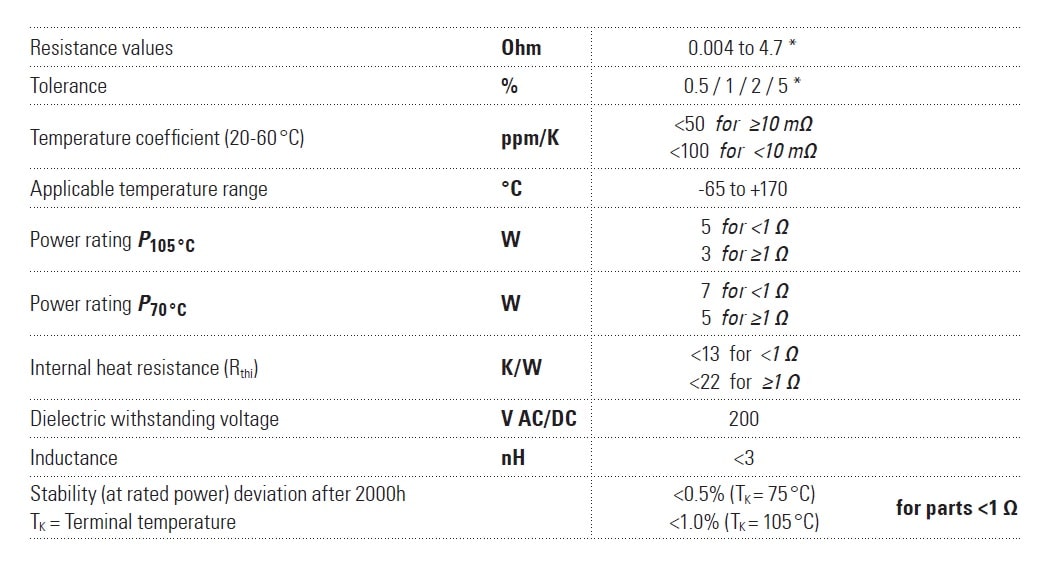

The below table gives an overview of the specifications for Isabellenhütte SMT-PW series:
* Please contact us or see ordering information tab
| Specifications | |
| Additional Features |
|
| Maximum Power Rating |
|
| Maximum Resistance | 4Ω |
| Minimum Resistance | 0.004Ω |
| Package/Size | 2817 |
| TCR |
|
| Tolerance |
|
We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:
| VIDEOS | |
|---|---|
| Introduction to Isabellenhütte Heusler GmbH & Co. KG Introduction video to Isabellenhütte, their business and product applications examples |
|
| Isabellenhütte precision and power resistors application overview This video highlights customer applications and application options of Isabellenhütte's precision and power resistors |
|
| VIDEOS | |
|---|---|
| Introduction to Isabellenhütte Heusler GmbH & Co. KG Introduction video to Isabellenhütte, their business and product applications examples |
|
| Isabellenhütte precision and power resistors application overview This video highlights customer applications and application options of Isabellenhütte's precision and power resistors |
|
The following table highlights the standard parts (resistance values and tolerances) available for the SMT-PW space approved resistor series:
This product is not compliant to the RoHS EU directive 2011/65/EU.
