Ametherm AS32 5R020
The AS32 5R020 inrush current limiting thermistor from Ametherm offers a maximum steady state current of 20A (up to +25°C) and a resistance of 5Ω ±25% (at 25°C). The Ametherm AS series are designed to withstand high steady-state current and input energy. Compared to traditional inrush current limiters, the devices offer lower current density, faster reset times, and a wider temperature range without derating. This lower current density, in combination with a uniform temperature gradient throughout the disc, increases reliability by eliminating hot spots from fatigue. The AS series from Ametherm are suitable for high energy and short term high current applications.
- Inrush current limiting thermistor
- Resistance of 5Ω ±25% (at 25°C)
- Maximum steady state current of 20A (up to +25°C)
- Maximum recommended energy of 300J (Actual energy failure at 600J)
- 0.03Ω at 100% maximum current and 0.06Ω at 50% maximum current
- Body temperature of +255°C at maximum current
- Material type B (for beta and curve)
- Dissipation constant of 78.2mW/°C
- Thermal time constant of 0mW/s
- Recognised by Underwriters Laboratories (UL) for ensured safety
Typical applications for the AS series include:
- Protection of pre-charge circuits in lithium ion batteries
- Variable-frequency drives in sports equipment like treadmills, high-speed computers and processors
- Switch mode power supplies for plasma cutters, welders, audio amplifiers, MRIs and x-ray machines

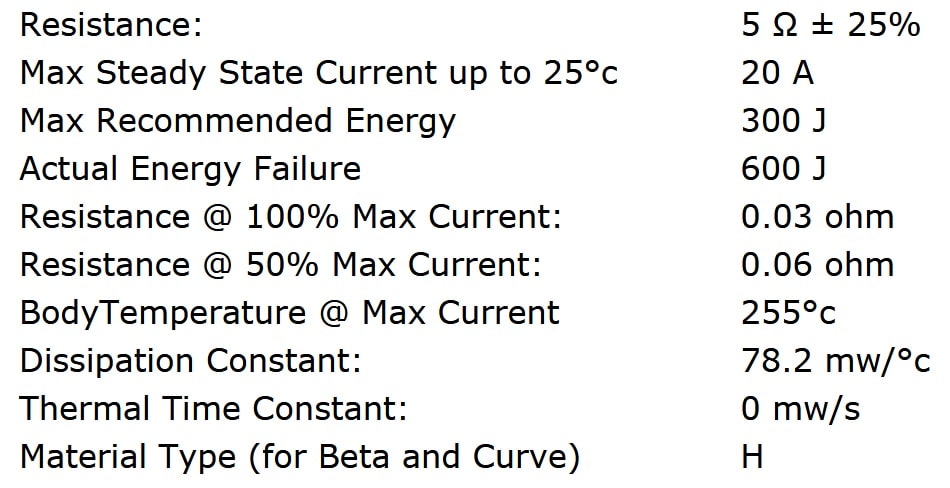

| Specifications | |
| Additional Features |
|
| Body Temperature | +255°C (at maximum current) |
| Maximum Recommended Energy | 300J (actual energy failure at 600J) |
| Maximum Steady State Current (upto +25°C) | 20A |
| Resistance at +25°C | 5Ω |
| Resistance at 50% Maximum Current (RImax) | 0.06Ω |
| Resistance at Maximum Current (RImax) | 0.03Ω |
| Tolerance | ±25% |
We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:
| DOCUMENTATION | |
|---|---|
 |
Ametherm AS32 5R020 inrush current limiting thermistor datasheet |
| VIDEOS | |
|---|---|
| Limiting Inrush Current with NTC and PTC Themistors Learn how to limit inrush current using NTC and PTC thermistors in this presentation by Ametherm. Many applications today, including industrial machinery, power tools and other high current equipment, use limiting inrush current as a major design consideration to combat the problematic effects of inrush current. Inrush current occurs when a system powers on and experiences a spike in current. This current can be substantially higher than standard operating current. If not properly managed, it can reduce the effective operating life and impose damage to equipment. For example, inrush current could disable a cooling fan, eventually leading to total system failure. Applications that are switched on and off quickly, such as welding equipment, present a particular concern for limiting inrush current. The limiting inrush current circuit must reset instantaneously during each power on to protect the system. This further complicates the management of inrush current. NTC stands for Negative Temperature coefficient. The NTC thermistor provides variable resistance based on temperature. As temperature increases, the resistance drops from high to low and allows current to pass through. PTC stands for Positive Temperature Coefficient. The PTC thermistor also provides variable resistance based on temperature. As temperature rises, resistance increases from low to high and blocks inrush current. Typically, NTC-based limiting is used for most applications. However, there are certain scenarios that require a PTC thermistor over an NTC thermistor. These include equipment with a near-zero reset time, extreme temperature conditions, and systems that experience frequent shorts. |
|
| Limiting Inrush Current for a 40VA Transformer Inrush current often causes problems for transformers. This video will show you how to calculate the right inrush current limiter for your transformer in 7 simple steps. |
|
| DC Motor Inrush Current and What You Need to Know What does inrush current have to do with DC motors? This video answers that question by discussing the cause of DC motor inrush current and how to prevent the inrush of current at startup from possibly damaging the DC motor with the use of Ametherm's Inrush Current Limiters. They start by explaining how a DC motor functions, its applications and key components, how inrush current factors in, how to solve the problem of inrush current, and how to select the right inrush current limiter for your application with three easy steps. |
|
| VIDEOS | |
|---|---|
| Limiting Inrush Current with NTC and PTC Themistors Learn how to limit inrush current using NTC and PTC thermistors in this presentation by Ametherm. Many applications today, including industrial machinery, power tools and other high current equipment, use limiting inrush current as a major design consideration to combat the problematic effects of inrush current. Inrush current occurs when a system powers on and experiences a spike in current. This current can be substantially higher than standard operating current. If not properly managed, it can reduce the effective operating life and impose damage to equipment. For example, inrush current could disable a cooling fan, eventually leading to total system failure. Applications that are switched on and off quickly, such as welding equipment, present a particular concern for limiting inrush current. The limiting inrush current circuit must reset instantaneously during each power on to protect the system. This further complicates the management of inrush current. NTC stands for Negative Temperature coefficient. The NTC thermistor provides variable resistance based on temperature. As temperature increases, the resistance drops from high to low and allows current to pass through. PTC stands for Positive Temperature Coefficient. The PTC thermistor also provides variable resistance based on temperature. As temperature rises, resistance increases from low to high and blocks inrush current. Typically, NTC-based limiting is used for most applications. However, there are certain scenarios that require a PTC thermistor over an NTC thermistor. These include equipment with a near-zero reset time, extreme temperature conditions, and systems that experience frequent shorts. |
|
| Limiting Inrush Current for a 40VA Transformer Inrush current often causes problems for transformers. This video will show you how to calculate the right inrush current limiter for your transformer in 7 simple steps. |
|
| DC Motor Inrush Current and What You Need to Know What does inrush current have to do with DC motors? This video answers that question by discussing the cause of DC motor inrush current and how to prevent the inrush of current at startup from possibly damaging the DC motor with the use of Ametherm's Inrush Current Limiters. They start by explaining how a DC motor functions, its applications and key components, how inrush current factors in, how to solve the problem of inrush current, and how to select the right inrush current limiter for your application with three easy steps. |
|
This product is available fully compliant to the RoHS EU directive 2011/65/EU.
- Views: 4620
-
- Product Code: Ametherm AS32 5R020
- SKU: Ametherm AS32 5R020
- Availability: In Stock
- £0.00
- Ex Tax: £0.00
